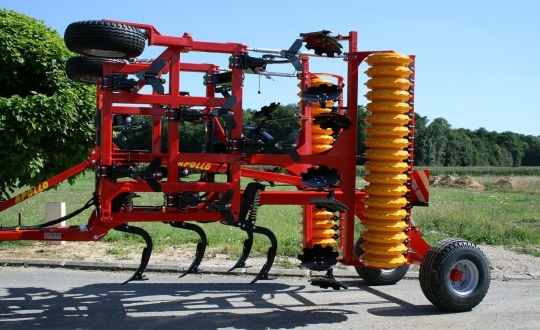

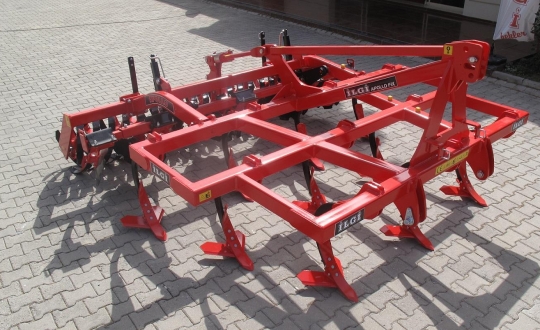

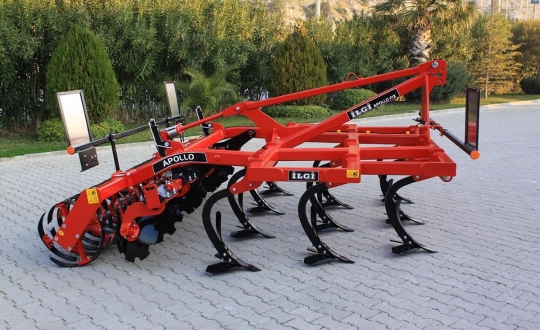

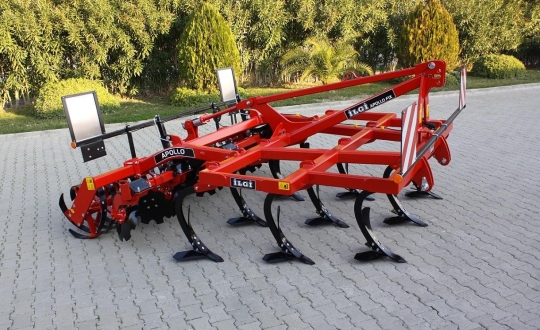

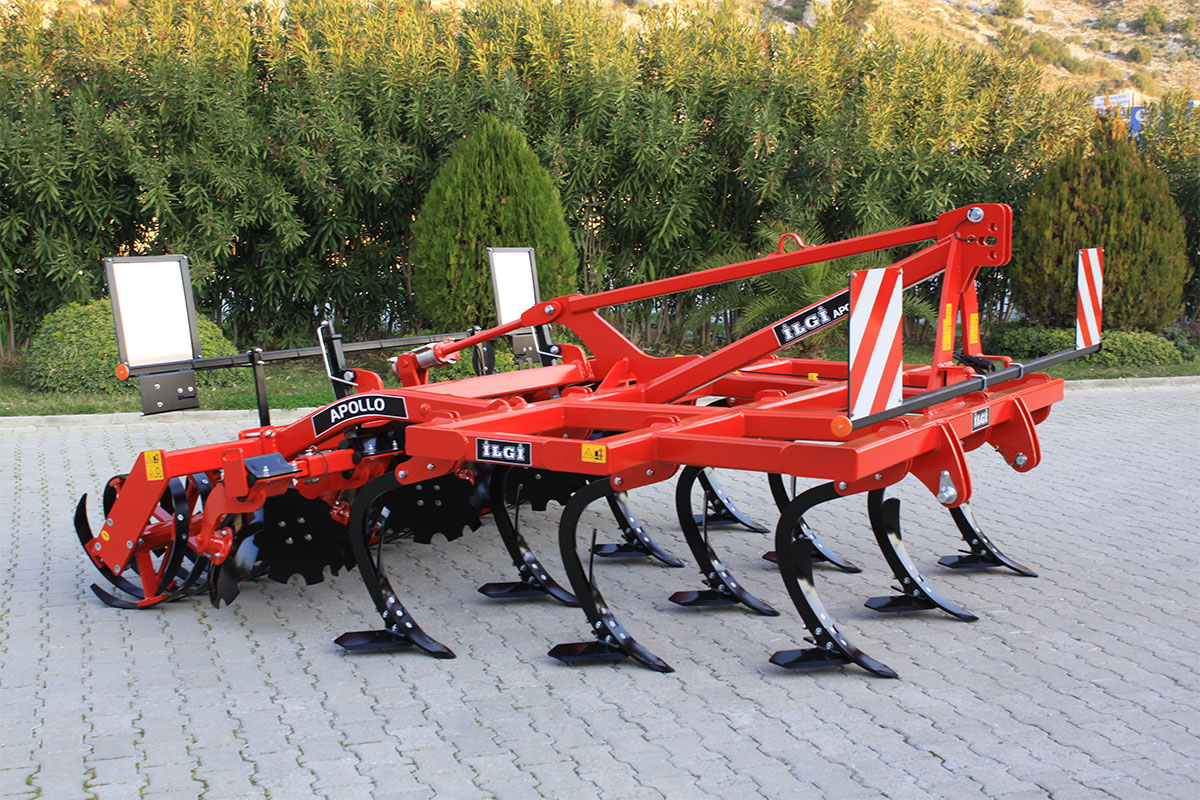

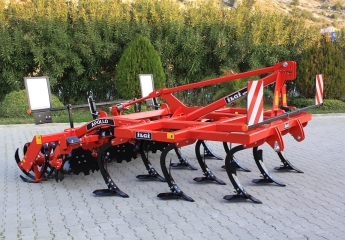

The heavy Apollo Fix cultivator is used for stubble breaking and seedbed preparation. It processes the soil by tearing it up to the desired depth without overturning it. The stubble is cut in layers from the root area and mixed well with the soil, and an organic fertilizer application is facilitated for the next crop period. Plant residues are ideally mixed into the soil.
A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions.

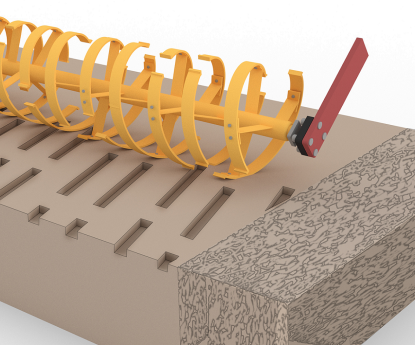

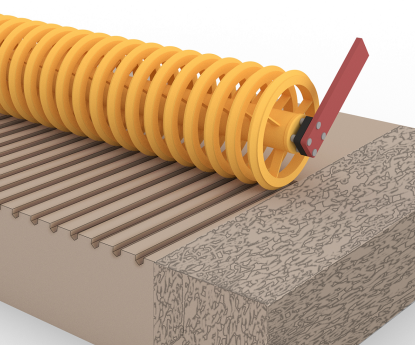

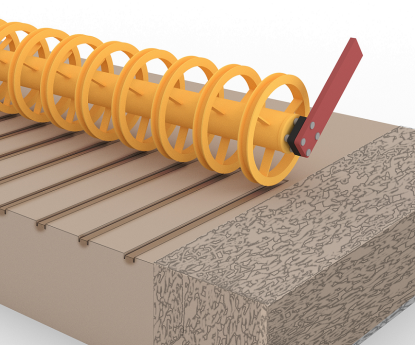

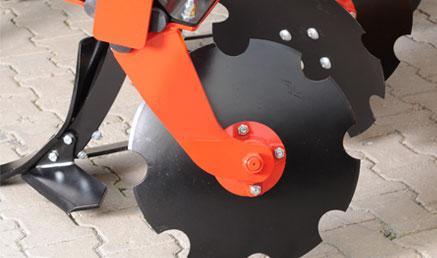

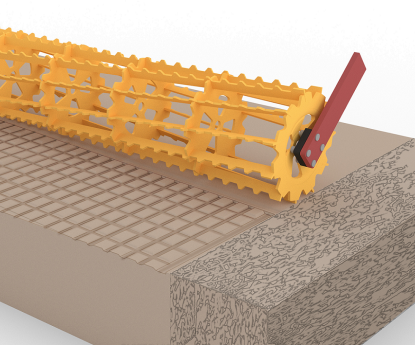

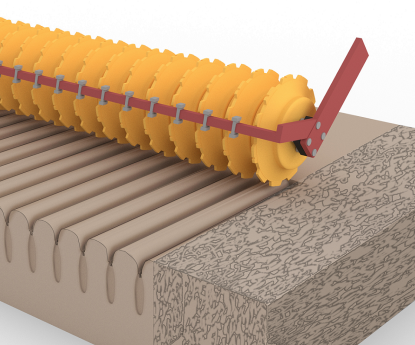

After deeply cultivating the soil with special production blades, the discs refine the processed soil and make it ready for leveling. A perfect surface is thus obtained by the soil breaking, compacting, and leveling operations using different types of rollers.
At a 8-12 km/h operating speed, with maximum efficiency ensured through the minimum amount of time.
Fuel savings are achieved from the low tractor power requirement provided by the ideal cutting angles of the blades.
To prevent the tines from being damaged while driving, and to ensure uninterrupted driving, the safety bolt on each tine is activated when it suffers an impact that may damage the tines, allowing the tine to lift from the ground and oscillate, preventing possible damage. The shear resistance of the safety bolt is 650 kg.

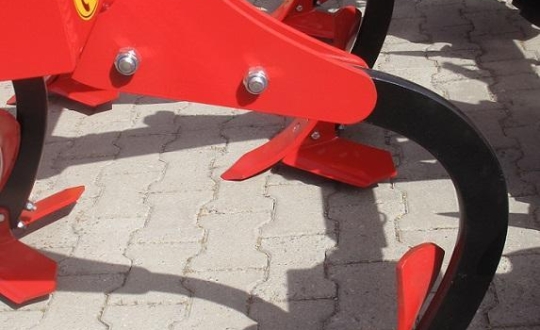

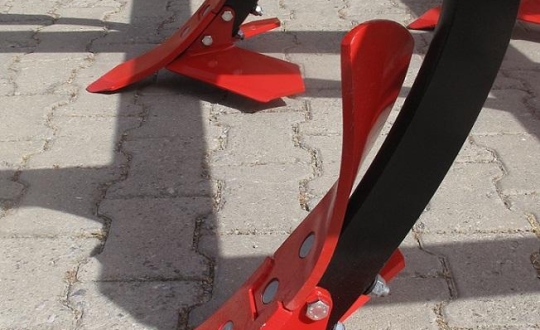

Apollo tines are produced for optimum strength and are resistant to harsh conditions and impacts. The safety bolt shear resistance of the tines during driving is 650 kg.
Maintenance- and lubrication-free, long-lasting, robust roller bearings.

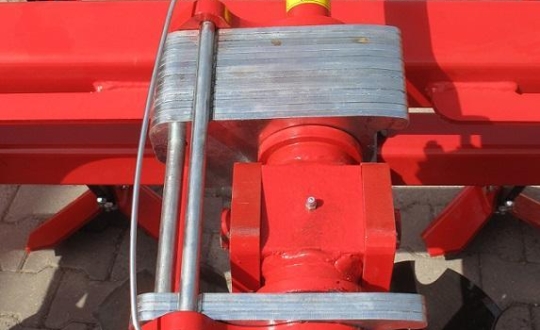

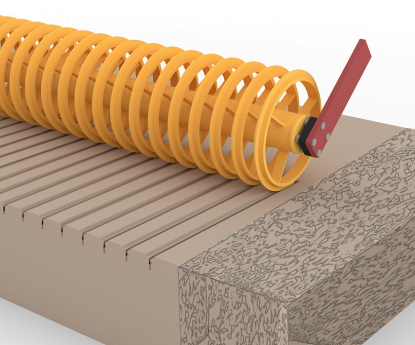

The desired working depth can be adjusted easily with the help of the roller. The working depth can be easily adjusted using 5 mm, 10 mm, and 20 mm thick aluminum spacers. The roller height can be adjusted mechanically or hydraulically.
For machines with a working width of 4m and above, the road width is reduced to 3m using the hydraulic folding system in the road position, ensuring safe transportation. The wings are connected to each other with special safety locks, providing maximum safety on the road. Furthermore, the hydraulic cylinders in the transport system are mechanically locked to ensure safety when on the road.

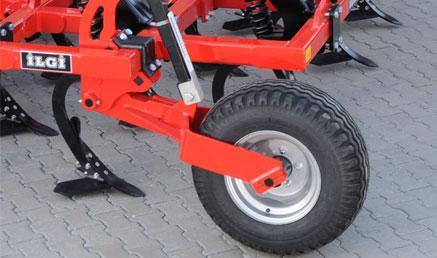

Standard on trailed Apollo, offered as an option on mounted-type machines. The front support wheel ensures a stable working depth on terrains with undulating surfaces and provides better machine balance.

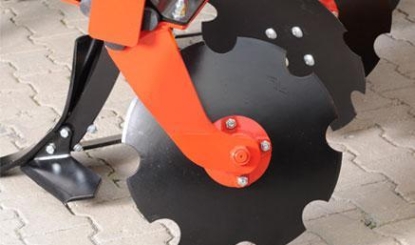

Leveling discs ensure that the soil, which is stirred by the discs, is directed in front of the roller in a way that maintains the field leveling.

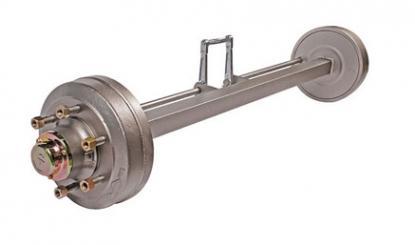

Optionally, mechanical or hydraulic braked axle options are available.
| Model | Chasis Type | Number of Tines | Working Width (cm) | Transport Width (cm) | Weight * (kg) | Power Requirement** (hp) |
|---|---|---|---|---|---|---|
| APOLLO 300-10 | Hanging Type | 10 | 300 | 300 | 2400 | 115 - 130 |
| APOLLO 350 - 12 | Hanging Type | 12 | 350 | 350 | 2630 | 120 - 170 |
|
APOLLO 400 - 13 |
Hanging Type Trailed Type |
13 13 |
400 400 |
300 300 |
3640 4640 |
200 - 250 200 - 250 |
| APOLLO 500 - 16 |
Hanging Type Trailed Type |
16 16 |
500 500 |
300 300 |
4686 5450 |
200 - 250 200 - 250 |
| APOLLO 600 - 19 | Trailed Type | 19 | 600 | 310 | 7120 | 240 - 280 |
| APOLLO 700 - 23 | Trailed Type | 23 | 700 | 310 | 7700 | 280 - 310 |
| APOLLO 800 - 25 | Trailed Type | 25 | 800 | 310 | 7890 | 300 - 350 |
