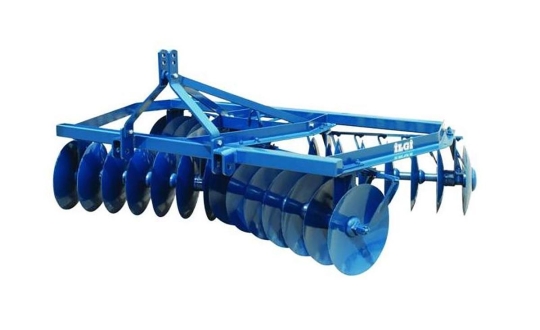

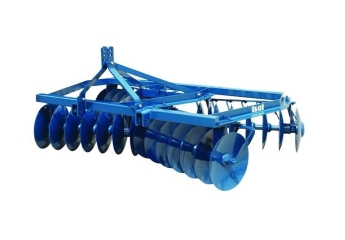

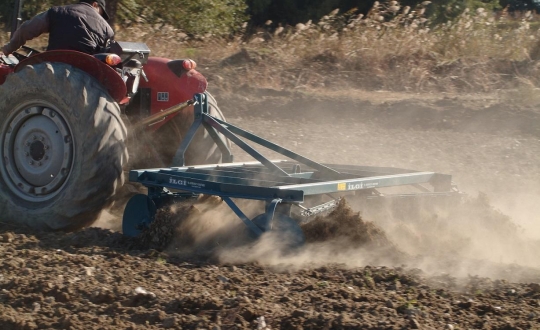

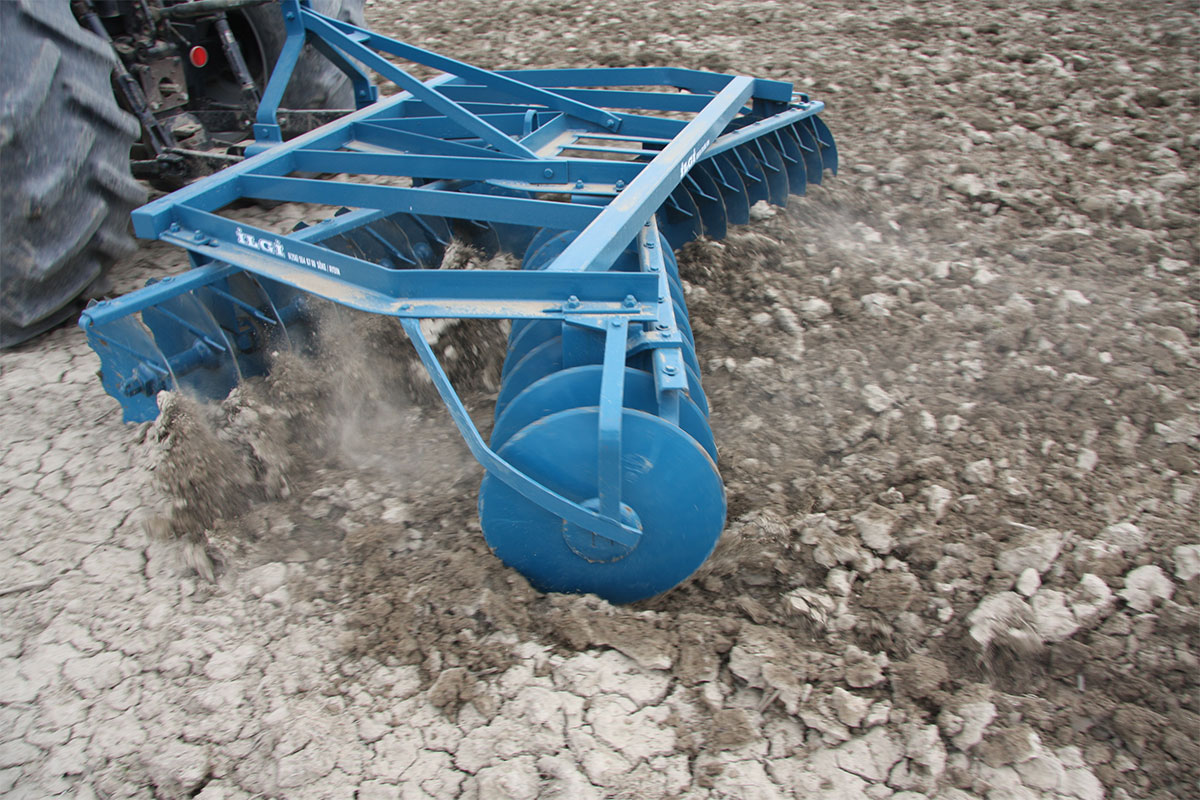

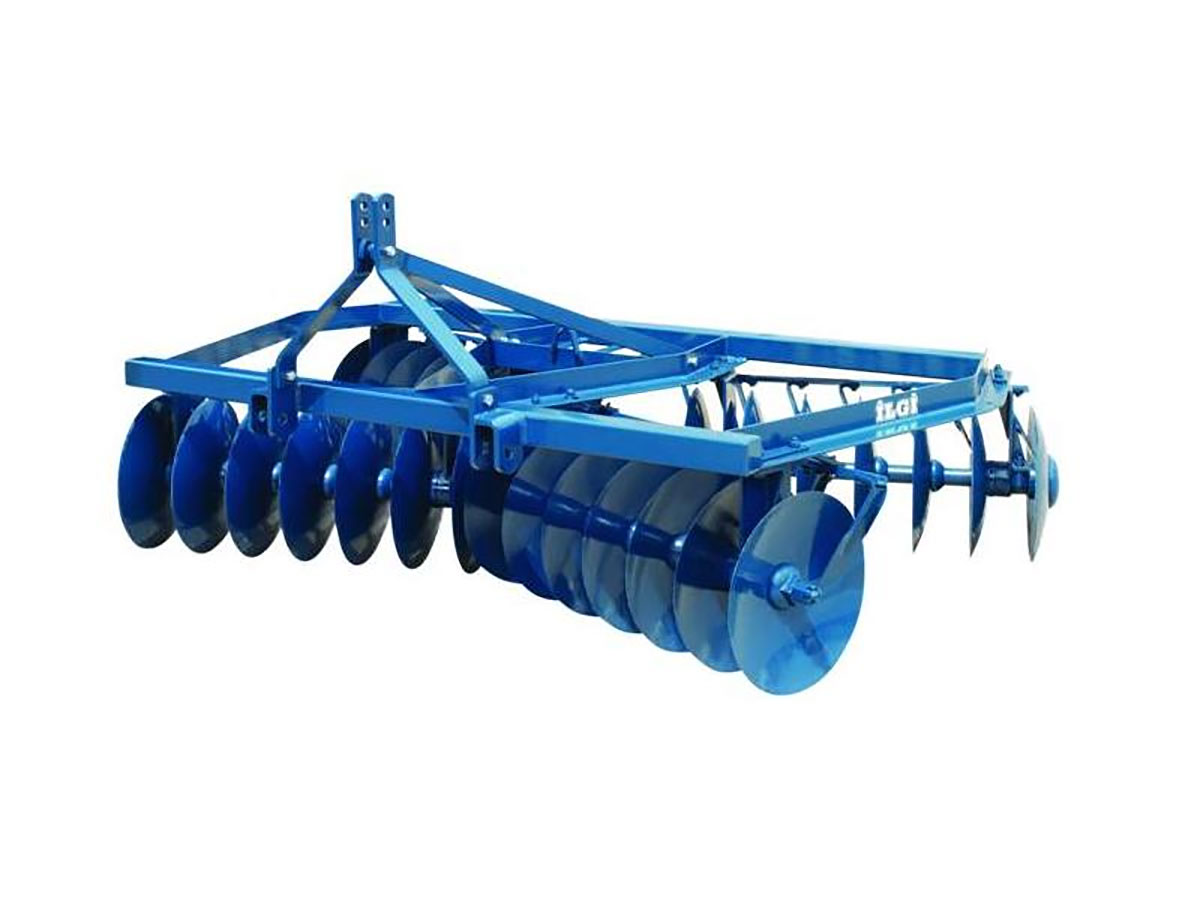

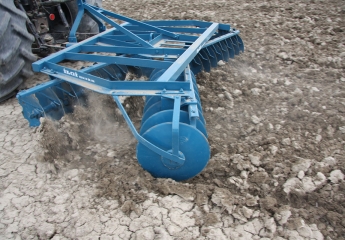

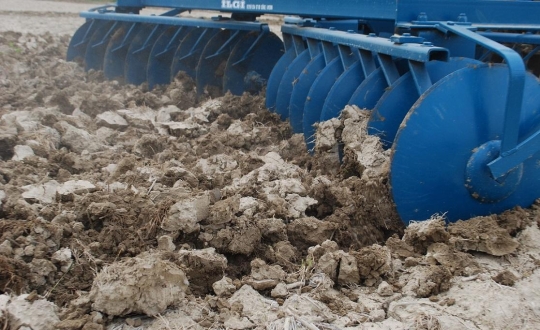

The mounted-type tandem disc harrow ATD is used for secondary soil cultivation, stubble shredding and mixing, and for the mixing and cultivation of soil in orchards. It is a practical, easy-to-use product that can meet the farmer's needs in other soil operations. It can be used for mixing discarded manure with the soil, for weed control, the processing of tree spaces in orchards, and for the preparation of the seedbed before planting. It is a product with high maneuverability.
A sturdy chassis that is durable and resistant to difficult conditions.

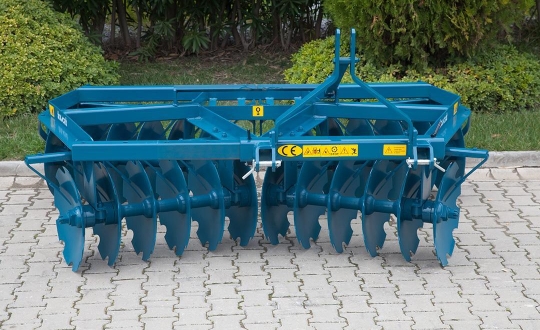

ATD, which is a tandem type disc harrow, provides convenience to the farmer.
The three-point hitch system of the machine is operated mechanically or hydraulically, facilitating easy work in inter-tree operations.

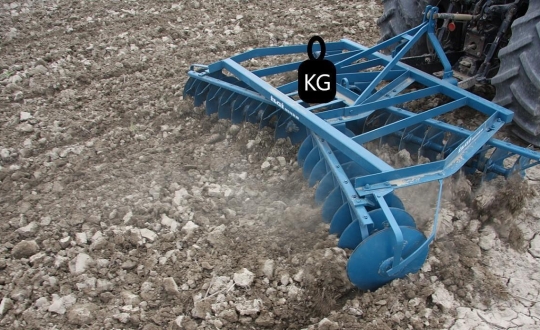

In cases where the desired working depth cannot be reached in heavier soil conditions, the working depth can be increased by adding additional weight to the weight baskets on the chassis
Maintenance- and lubrication-free, long-lasting, robust roller bearings.
Welded disc arms that are resistant to tough conditions and strong impacts.
Notched and flat disc options are available depending on demand and need.

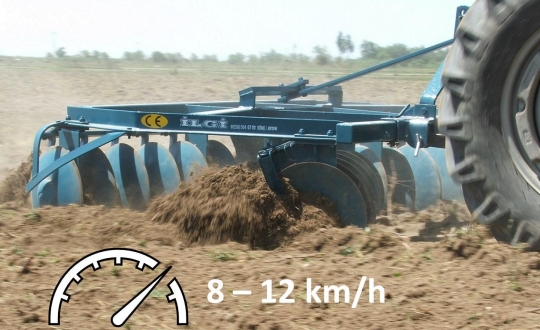

(Its 8-12 km/h operating speed provides maximum efficiency with the minimum amount of time.

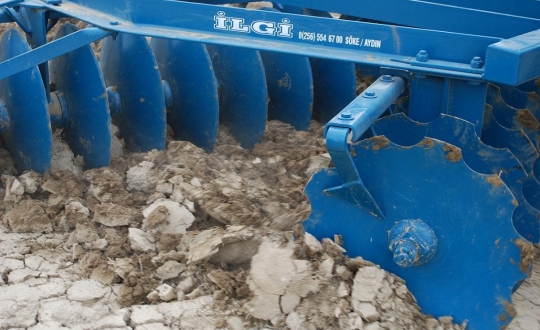

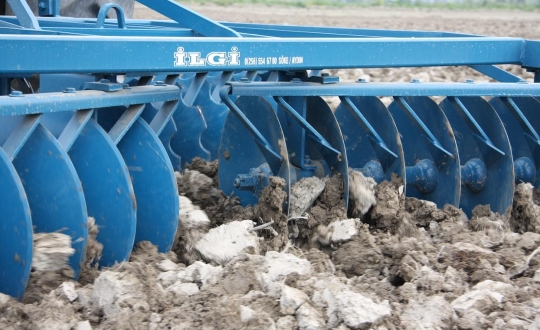

Special production scrapers are included with each disc and prevent residue by scraping the discs during soil cultivation. The distance between the scrapers and the discs can be set as desired or adjusted for wear.
| Model | Number of Discs | Disc Diameter(mm) | Working Width (cm) | Transport Width (cm) | Weight (kg) | Power Requirement(HP) |
|---|---|---|---|---|---|---|
| 20 ATD 46 | 20 | 460 | 215 | 235 | 455 | 40 - 60 |
| 24 ATD 46 | 24 | 460 | 230 | 250 | 520 | 50 - 70 |
| 28 ATD 46 | 28 | 460 | 245 | 265 | 570 | 60 - 80 |
| 32 ATD 46 | 32 | 460 | 260 | 280 | 630 | 70 - 100 |
