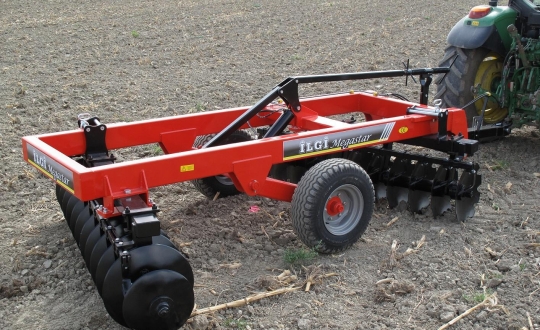

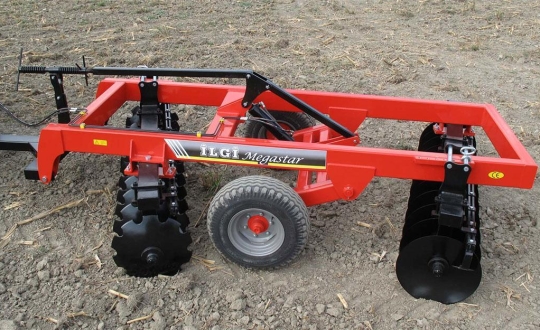

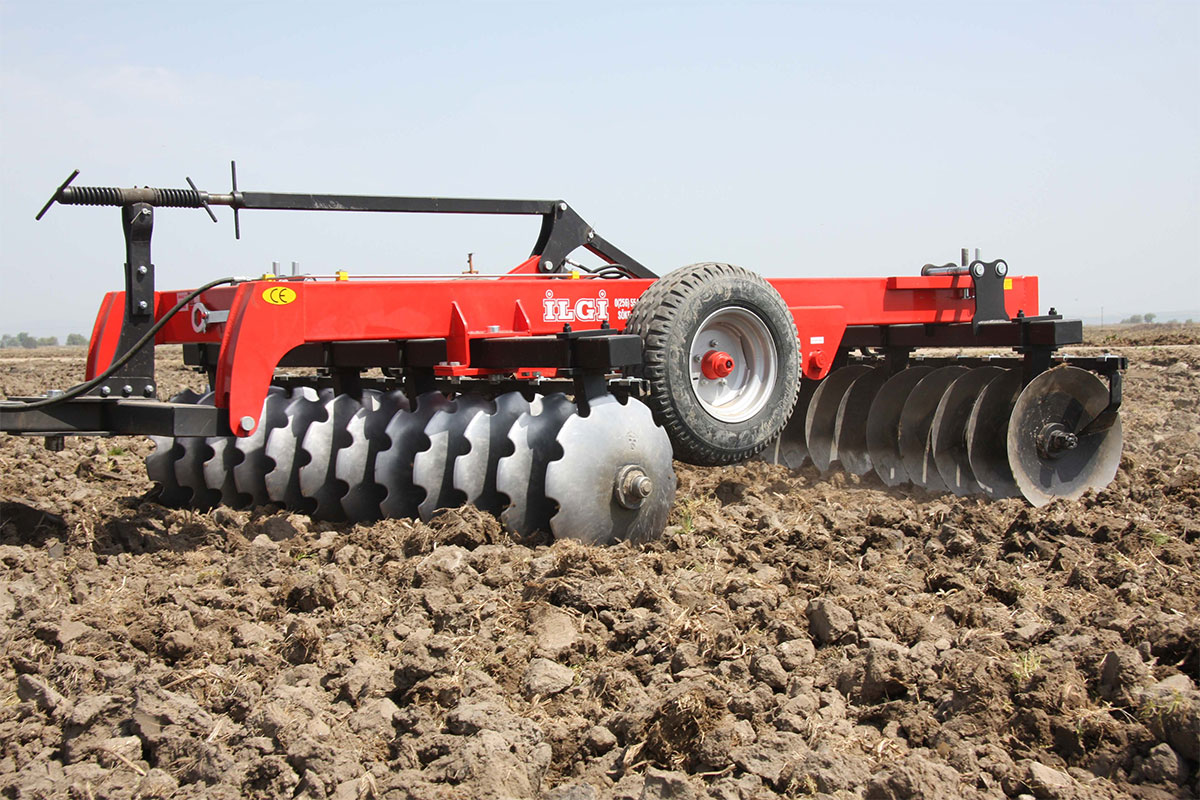

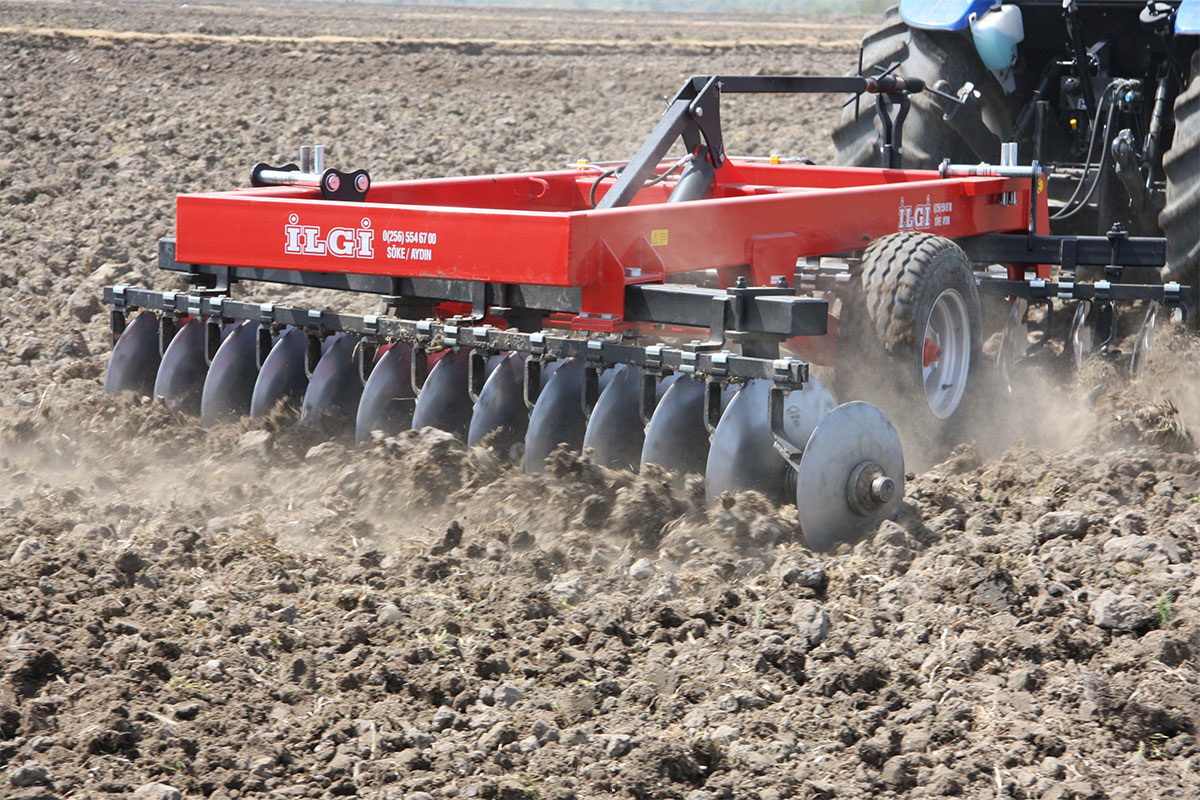

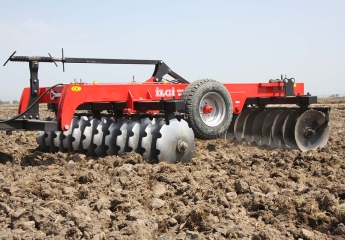

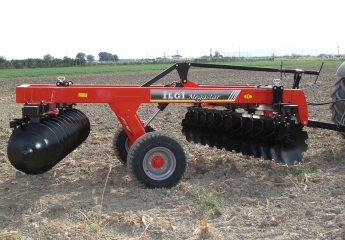

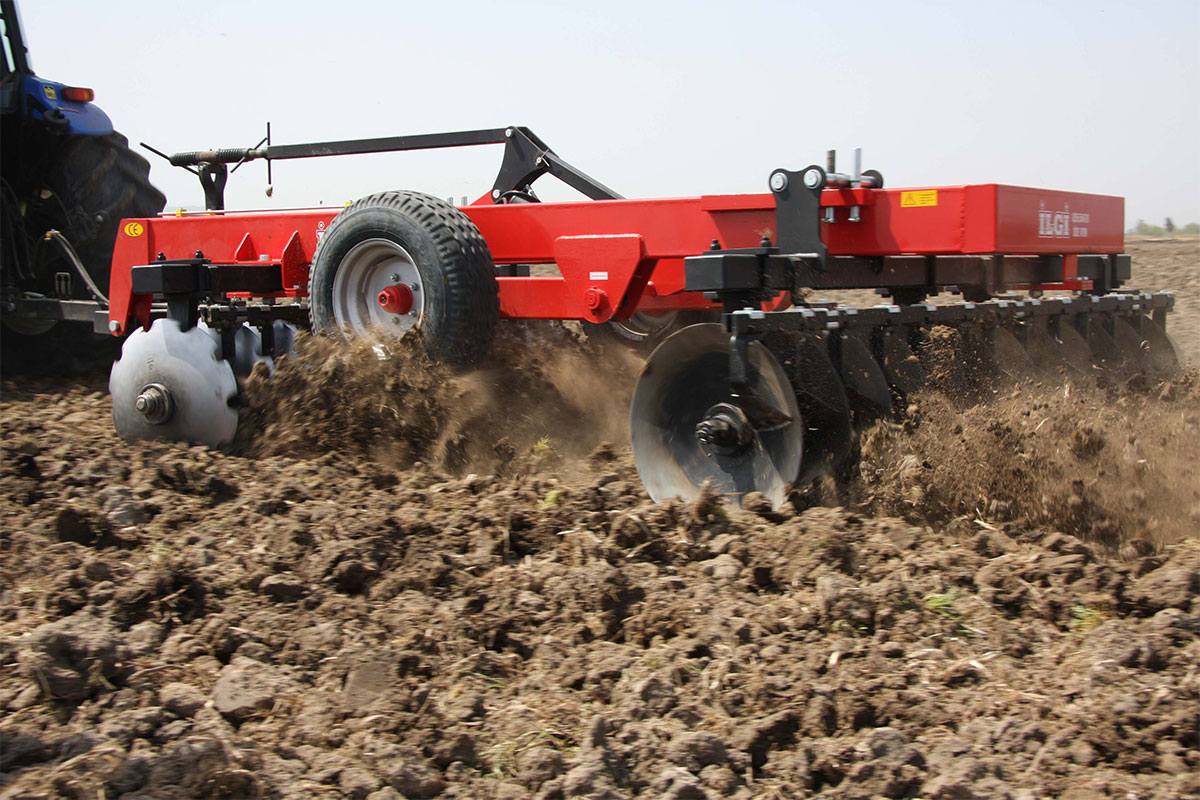

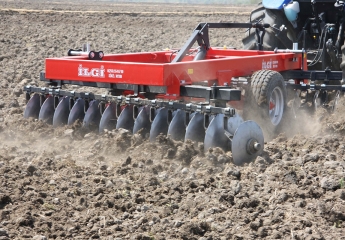

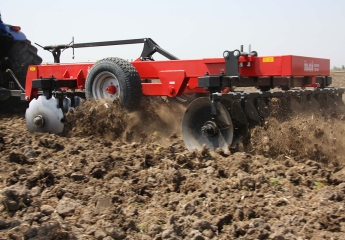

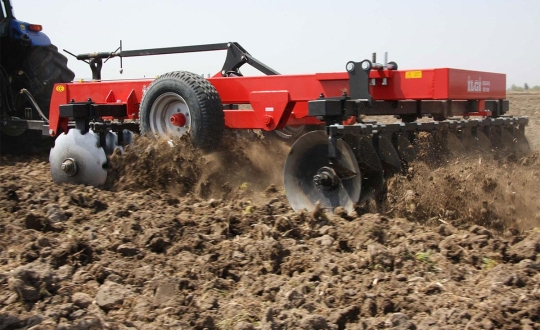

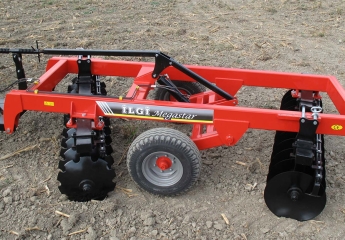

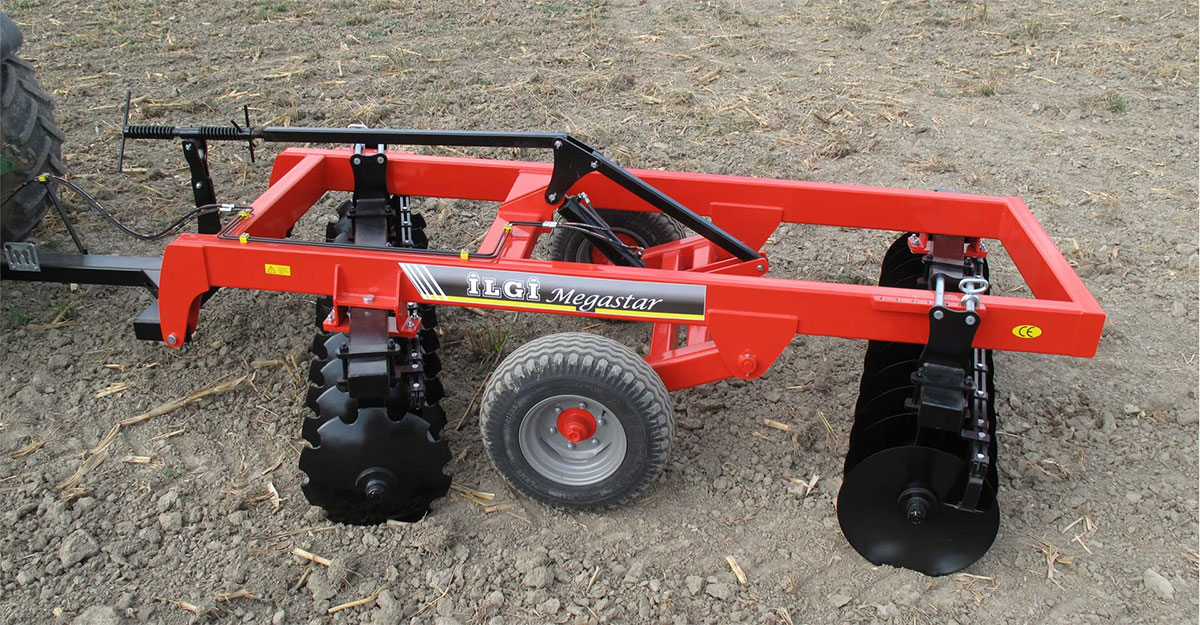

The heavy offset disc harrow Megastar is designed to handle many tasks. It can be used for both high-residue primary and secondary soil cultivation. Its heavy and durable structure is suitable for use in difficult conditions and for deep plowing. The different models available allow the farmer to choose the most appropriate solution for their needs.
A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions.

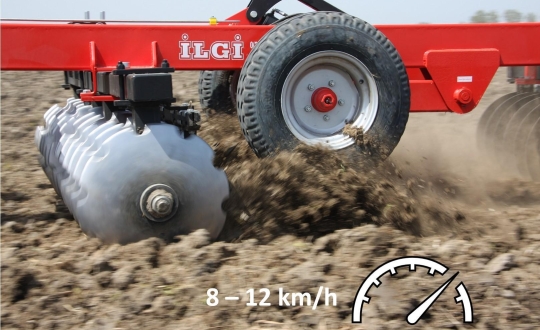

Its 8-12 km/h operating speed provides maximum efficiency with the minimum amount of time.

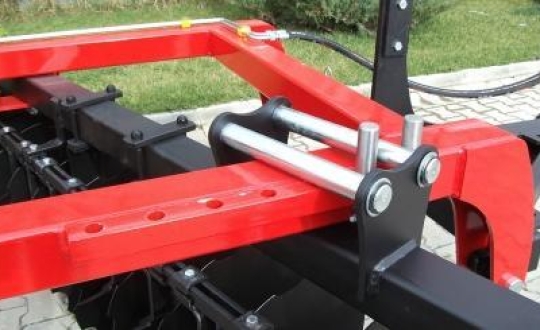

The directional angles affecting the working depth, tilt, and breaking properties of the discs can be easily adjusted using the multi-hole mechanism on the chassis. The direction angle can be adjusted mechanically or hydraulically.
maintenance- and lubrication-free, long-lasting, robust roller bearings
welded disc arms that are resistant to tough conditions and strong impacts

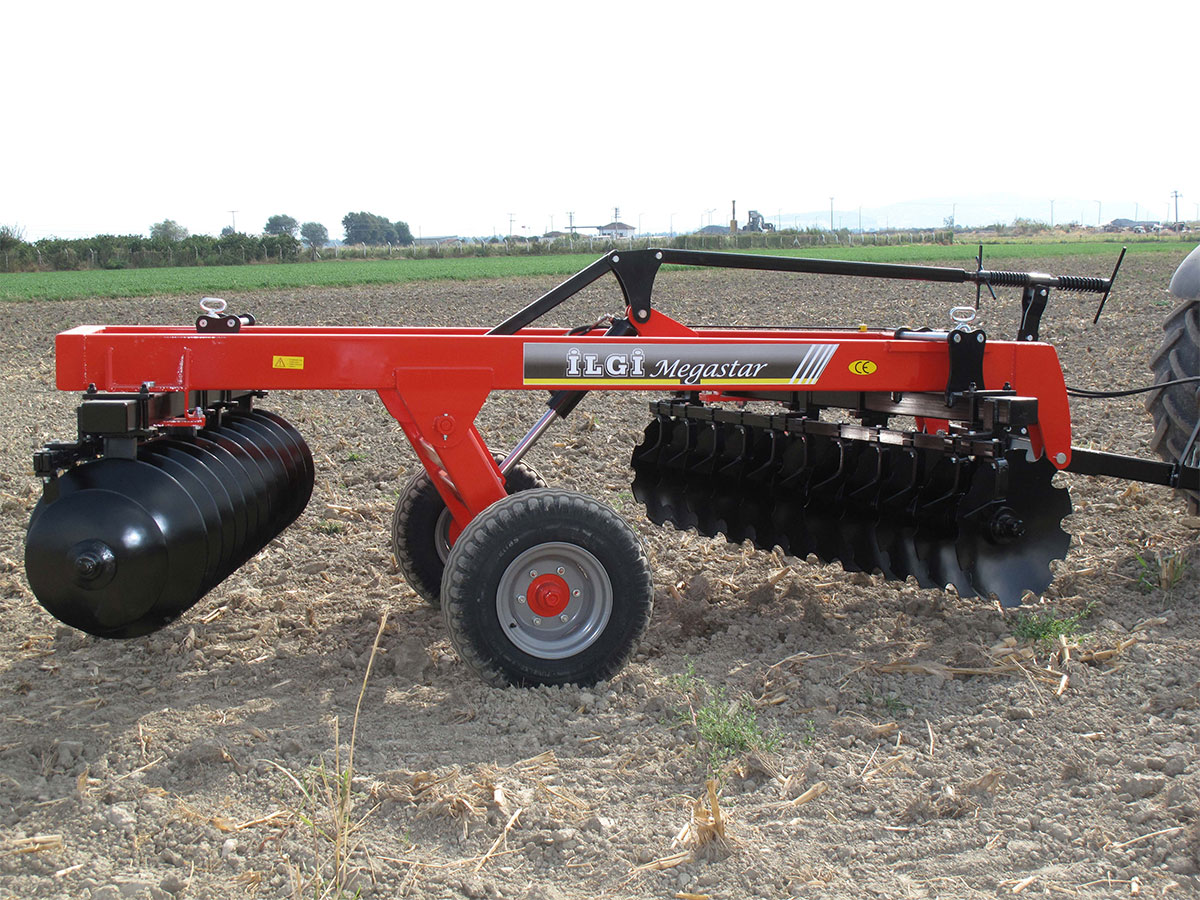

the spring tension arm connecting the axle and the drawbar ensures the front and rear batteries are parallel. Parallelism can be adjusted hydraulically. At the same time, the spring suspension ensures flexibility, adapts to the unevenness of the field surface and the road conditions during operation, and minimizes bed and disc breakage.

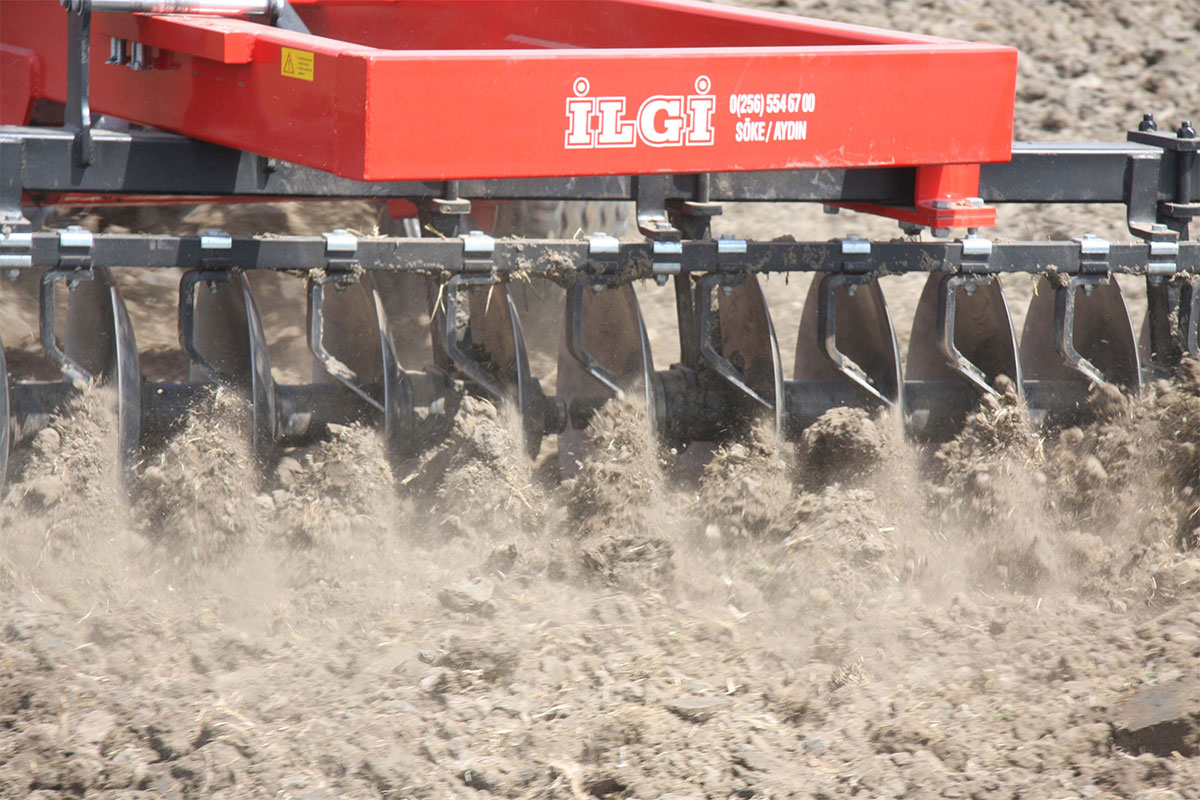

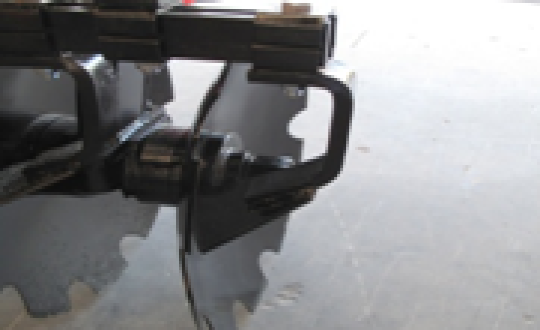

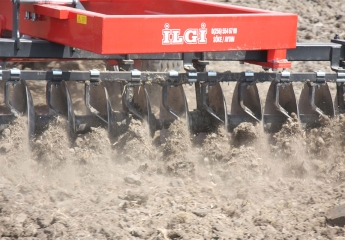

special production scrapers are included with each disc and prevent residue by scraping the discs during soil cultivation. The distance between the scrapers and the discs can be set as desired or adjusted for wear.

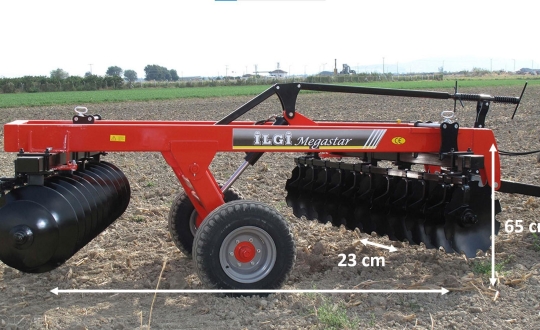

the chassis height is 65 cm, the distance between discs is 23 cm, and the space between the front and rear discs is wide. The large working area of the discs ensures the most efficient transfer of soil from the front to the rear and facilitates working with minimum residue accumulation.

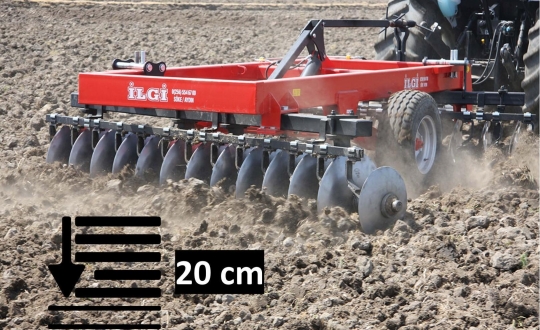

The maximum working depth can be attained by adjusting the disc direction angle [by up to 25 degrees] and the heavy chassis.

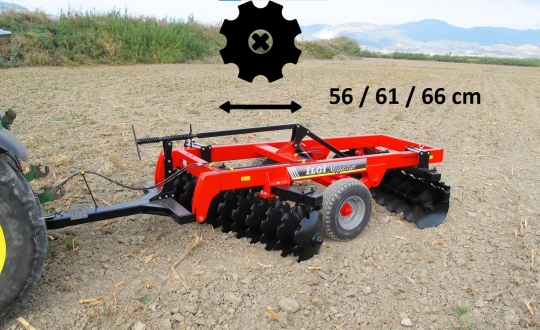

56, 61, and 66 cm-diameter notched and flat disc options are available. The machine can be produced with 18 to 36 discs without folding, or with 40 to 56 discs with folding.
| Model | Number of Discs (mm) | Disc Diameter(mm) | Working Width (cm) | Transport Width (cm) | Weight (kg) | Power Requirement(HP) |
|---|---|---|---|---|---|---|
| 18 AGB 56 | 18 | 560 | 200 | 230 | 1380 | 60-70 |
| 20 AGB 56 | 20 | 560 | 220 | 250 | 1460 | 70-80 |
| 22 AGB 56 | 22 | 560 | 240 | 270 | 1520 | 80-90 |
| 24 AGB 56 | 24 | 560 | 260 | 290 | 1580 | 90-100 |
| 26 AGB 56 | 26 | 560 | 280 | 310 | 1640 | 100-110 |
| 28 AGB 56 | 28 | 560 | 300 | 330 | 1680 | 110-120 |
| 30 AGB 56 | 30 | 560 | 320 | 350 | 1850 | 120-130 |
| 32 AGB 56 | 32 | 560 | 340 | 370 | 1930 | 130-140 |
| 34 AGB 56 | 34 | 560 | 360 | 390 | 2010 | 140-150 |
| 36 AGB 56 | 36 | 560 | 380 | 410 | 2100 | 150-160 |
